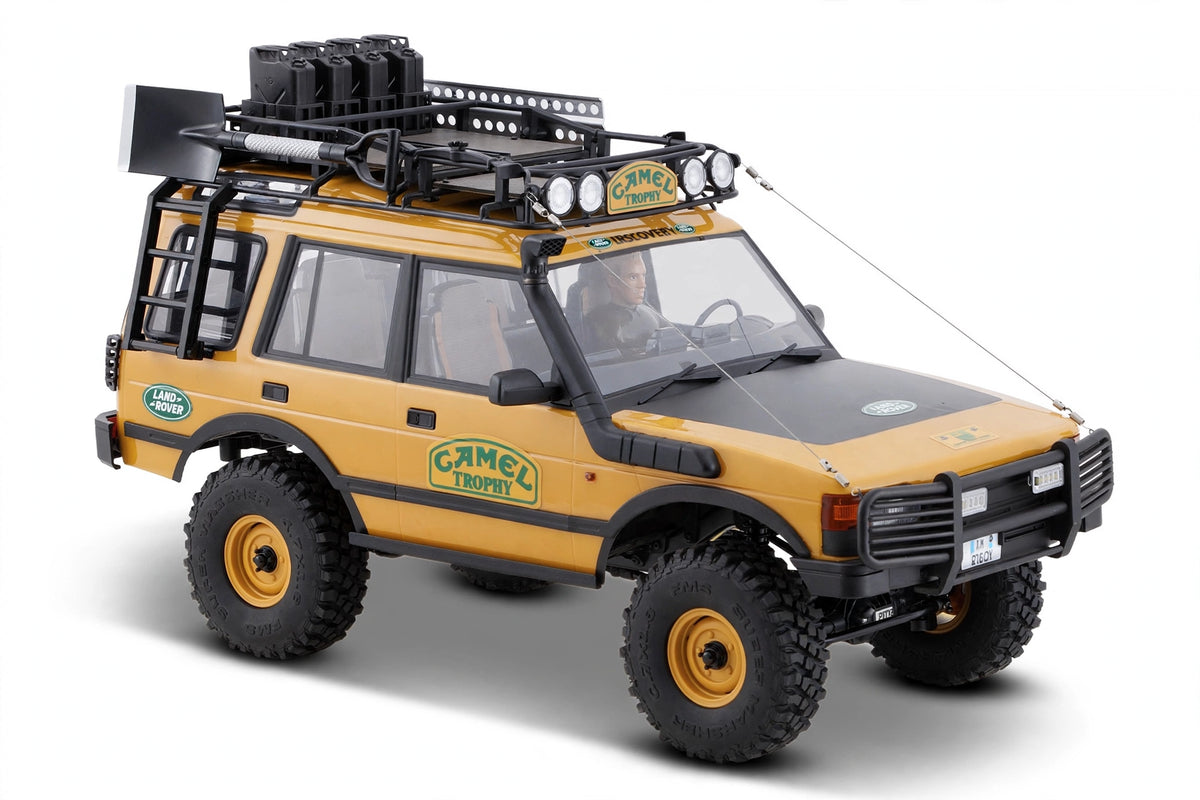

FMS 1/10 FCX10 Land Rover Discovery Camel Trophy Edition RS

Basic Info

• Model: FMS 1/10 FCX10 Land Rover Discovery Camel Trophy Edition RS
• SKU: FMS11043RSYL-SP
• Scale: 1:10
• Color: Camel Trophy Yellow / Sand Yellow
• License: Officially licensed by Land Rover

Dimensions (Discovery variant)

• Length: 609mm
• Width: 293mm
• Height: 341mm
• Wheelbase: 321mm
• Tires: 120mm diameter - FMS Super Marsher soft compound with foam inserts
• Wheels: 66mm dia x 26mm width, 1.9" Beadlock style, 12mm hex
• Ground Clearance: 68mm
• Approach Angle: 49°
• Departure Angle: 39°

Chassis & Drivetrain

• Chassis: FCX10 metal ladder frame, front-center motor layout, low CG
• Suspension: 4-Link front/rear, oil-filled aluminum shocks
• Axles: Front/rear straight axles (solid axle)
• Drivetrain: 4WD, full metal gears, full ball bearings
• Transmission: 2-speed, remote-controlled via servo - Low: ∼6 mph torque crawl, High: ∼14 mph trail
• Bearing: Full set precision ball bearings

Electronics

• Motor: 550 Brushed 32T (pre-installed)
• ESC/Receiver: R6D-ESC-BS 2-in-1 waterproof 60A ESC + 6CH Receiver (pre-installed)
• Transmitter: MG6 6-Channel 2.4GHz (included)
• Steering Servo: 25kg V2 high-torque waterproof metal-geared
• Shift Servo: Waterproof metal-geared 2-speed shift servo

Scale Details

• Body: PC soft plastic (flexible polycarbonate) with Camel Trophy livery
• Lighting: Magnetic Connection Light System - working headlights, taillights, turn signals, roof spotlights (4x on rack), reverse lights
• Quick-Release: Patented spring-loaded magnetic body mount
• Accessories: Roof rack, snorkel, side mirrors, mudguards, rear ladder, shovel, axe, pickaxe, fuel drums/jerry cans, brush guard, limb risers
• Interior: Fully detailed cabin, realistic dashboard, clear windows, driver figure
